CALCIUM SULPHATE HPL FINISH
SPECIFICATIONS
Product Specifications

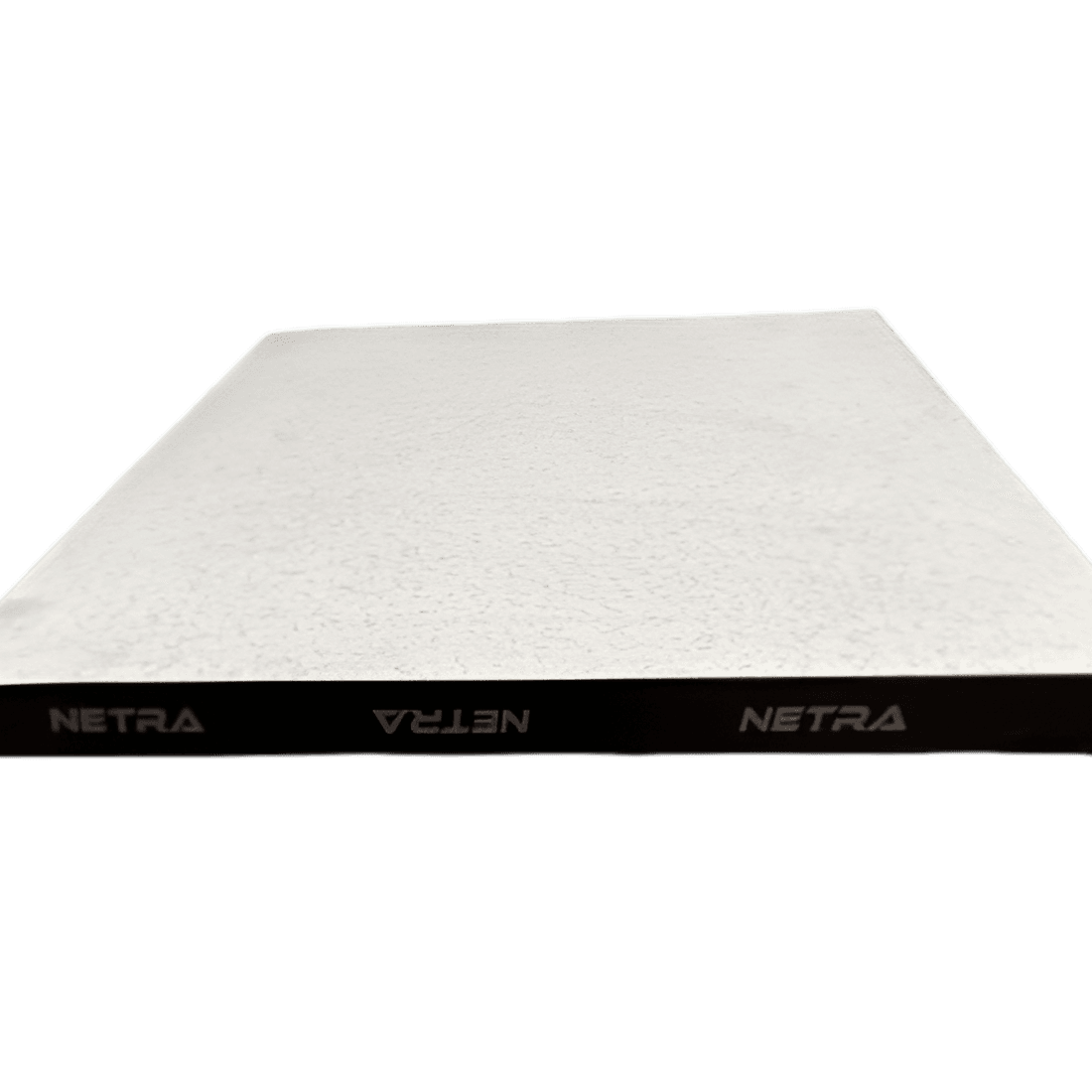

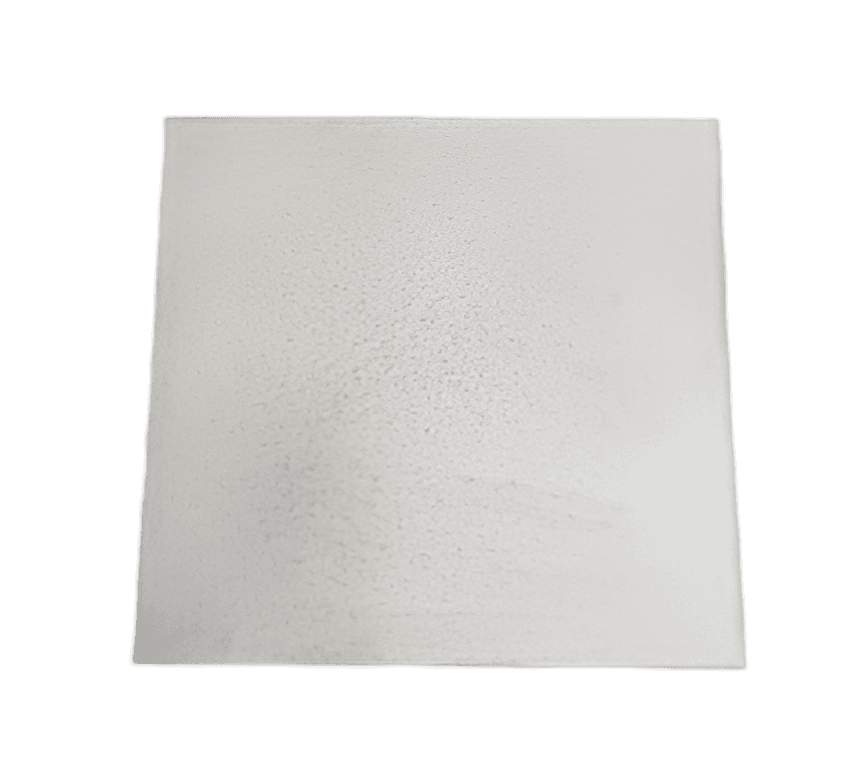

| Product Name | HPL Finished Calcium Sulphate Raised Floor |
| Size | 600 x 600 x 35 mm |
| Material |
Environment Friendly Calcium Sulphate Core 30 mm Top HPL Finished, Bottom Galvanized Steel Plate |
| Fire Protect Performance | Class A1 |
| Concentrated Load | Point Loading is 560 KG |
| Impact Load / N | ≥ 636 |
| Ultimate Load / N | ≥ 11860 |
| Uniform Load N/m² | ≥ 23000 |
| Rolling Load / N |
10 Times: 3560 10000 Times: 2670 |

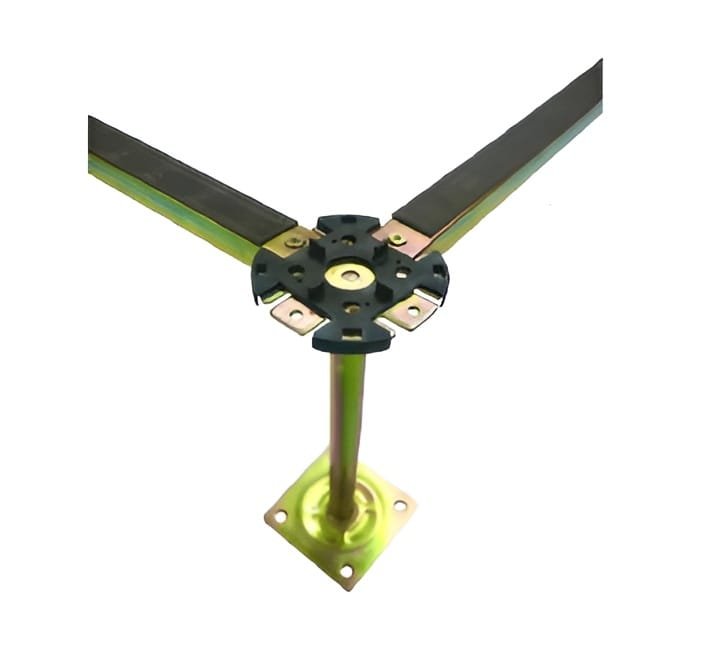

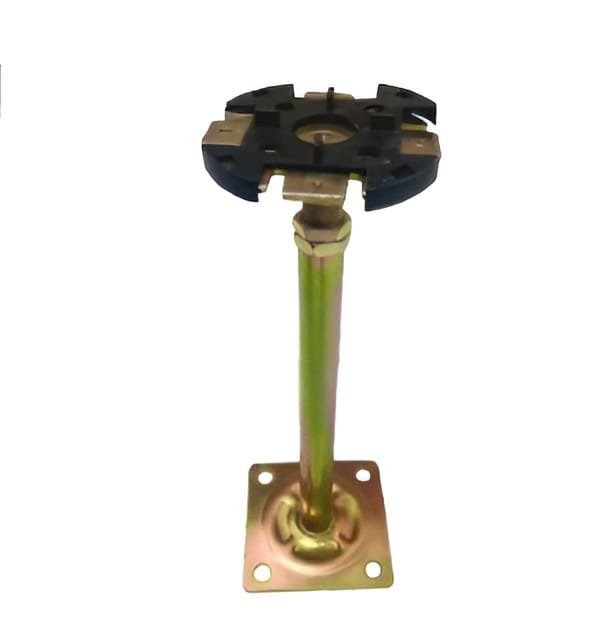

| Pedestal |
All Steel Construction Zinc Plated. Top Dia 90mm * 3.0mm Bottom: 95*95*2.5mm All Steel Tube: Dia 25 mm, 1.5 mm Thick of The Tube |

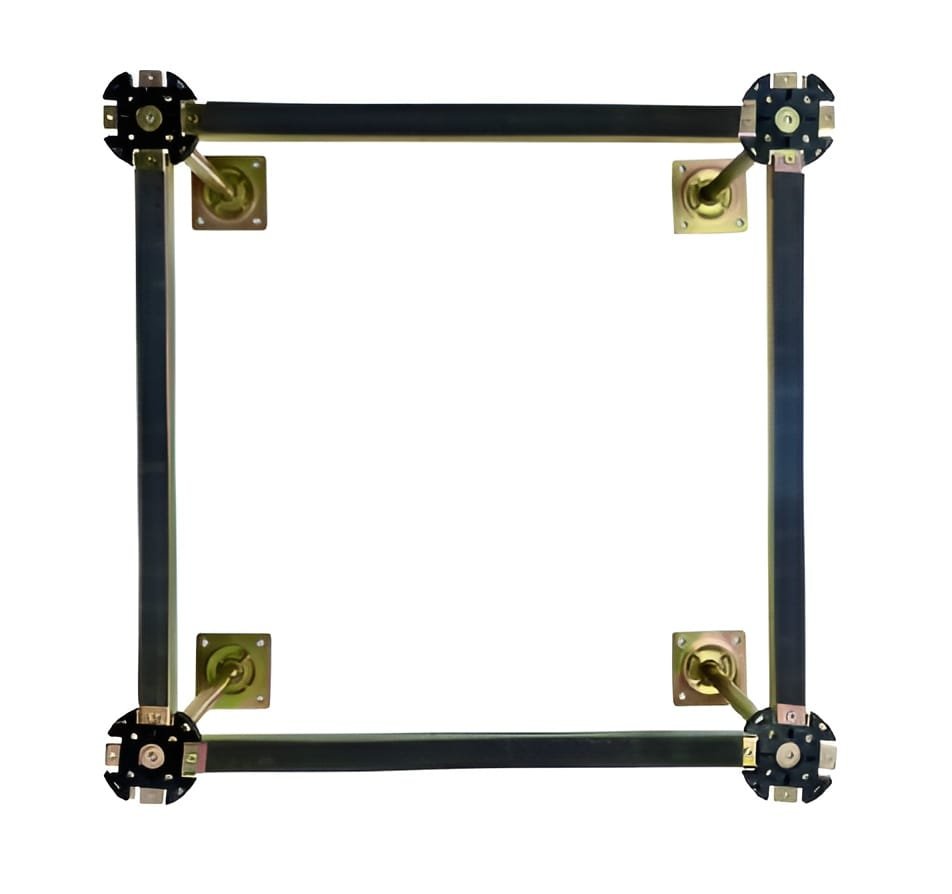

| Stringer | Steel Tube Galvanizing (20*30*535*1.0 mm) |
